NUX Audio B-8 Guitar Wireless System
American Music is proud to present the NUX B-8 Guitar Wireless System!
The B-8 Guitar Wireless System is a professional-grade solution in NUX’s Pro Series. Built on our third-generation platform, it combines anti-interference tech, intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design for rock-solid, reliable signal. The latest firmware further improves wireless performance with better transmission efficiency and stronger interference resistance.

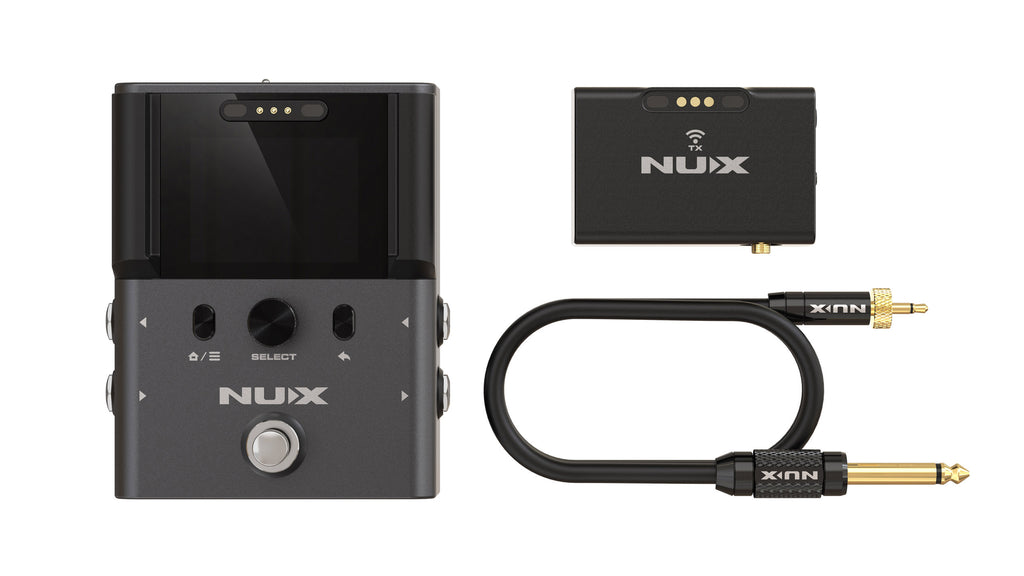

Designed for guitars, basses, and any instrument with a 1/4″ output, the system pairs a beltpack transmitter with a multifunction pedal receiver. It operates at 2.4 GHz, supports auto-pairing, delivers 24-bit/48 kHz audio, achieves latency down to 2.5 ms, and reaches up to 165 ft (50 m) line-of-sight. The transmitter’s built-in lithium battery provides up to 6.5 hours of runtime! Enough for rehearsals, sessions, and gigs.

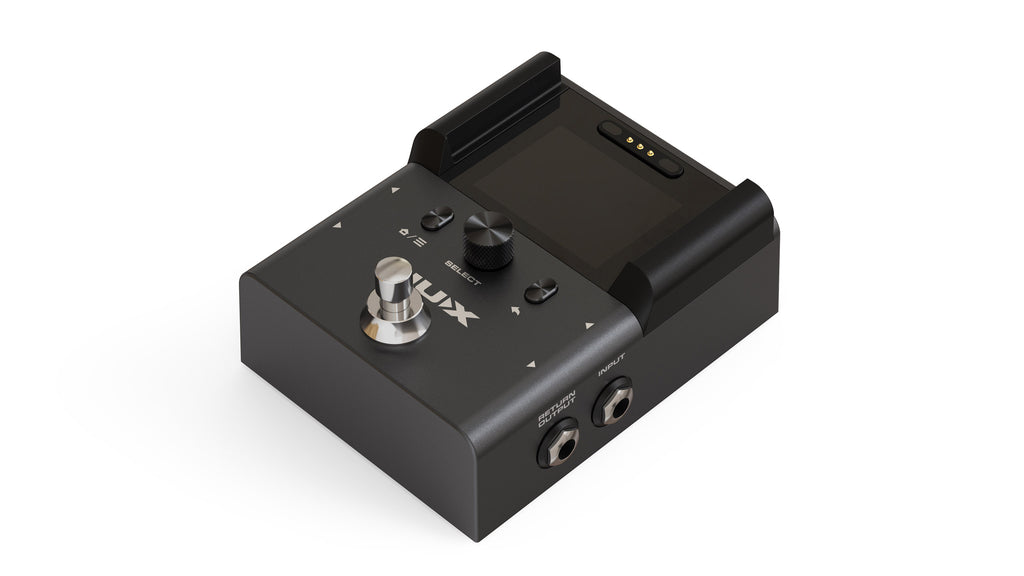

The pedal receiver has a magnetic charging port. Just place the transmitter on it to start charging—no plugs needed. The magnetic connection is secure and lets you quickly recharge during breaks.
Specs.
– B-8 Guitar wireless system for guitars, bass, and 1/4″ output instruments.
– Suitable for band rehearsals, live performances.
– 2.4 GHz wireless with true diversity antennas.
– Pro-series for stable coexistence in environments with heavy wireless traffic.
– Intelligent frequency hopping avoids interference automatically.
– 79 channel with 1 MHz bandwidth for enhanced wireless compatibility.
– 6-level stability (2.5 ms to 8.7 ms); increasing stability levels can improve wireless stability.
– Compact transmitter clips onto guitar strap to prevent plug loosening and rotation.
– Cable Tone simulates the feel of traditional guitar cables.
– High-sensitivity tuner for quick and accurate tuning.
– Built-in buffer improves signal clarity when using multiple pedals.
– Junction box send / Return loop for connecting pedals or multi-effects.
– The receiver provides magnetic charging for fast and secure transmitter recharging.

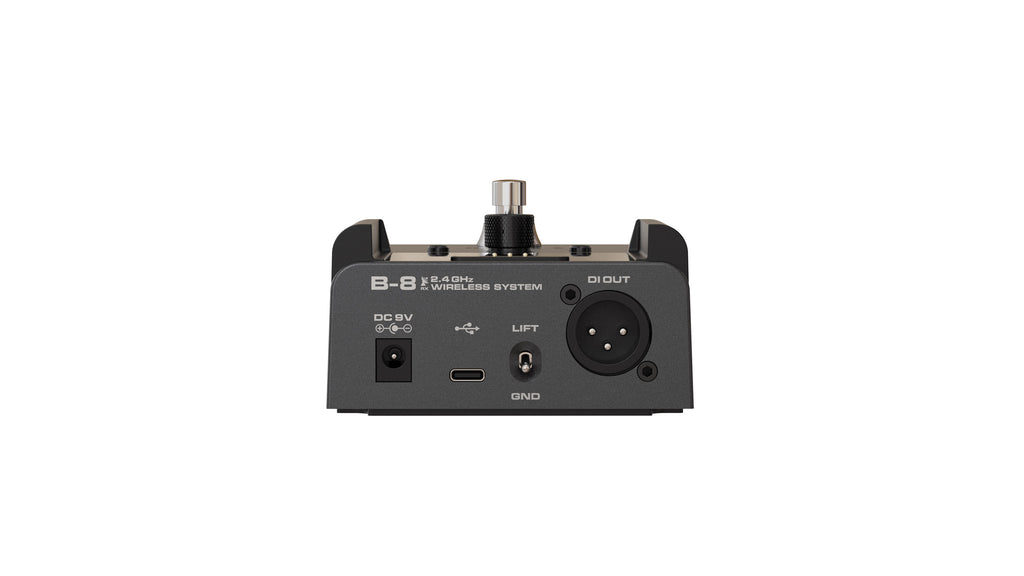

– Built-in DI function for easy connection to mixers and recording equipment.
– Customizable startup screen and tuner UI for personal style.
– 2.4″ high-res color screen, supports horizontal and vertical display
– Receiver powered by 9 V/500 mA or 12 V/500 mA (center-negative) power supply
– Transmitter 6.5 hours battery life.
– 0 to +12 dB clean boost.
– 24-bit/48 kHz audio quality.
– Up to 165 ft wireless range (line-of-sight).
– 20 Hz–20 kHz frequency response.
– 122 dB dynamic range.
